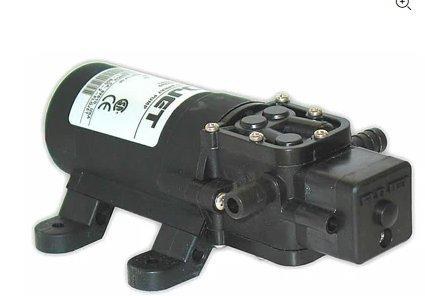

Flojet 12V Water System Pump 1.1 GPM

Flojet's LFP122202A is part of the LF series pumps used for chemical wash down, fluid transfer and reverse osmosis filtration applications. Pump features a motor driven design house in a polypropylene housing, Viton check valve, stainless steel check valve spring . Compatible with 12 VDC electrical connections. Equipped with 3/8" hose barb connection ports.

Specifications:
Pump Design: Reciprocating diaphragm
Maximum Flow Rate: 1.0 GPM at open flow
Duty Cycle: Intermittent
Housing Material: Polypropylene
Diaphragm: Santoprene(R)
Check Valve Material: EPDM
Check Valve Spring: 316 Stainless steel
Port Type: Quick disconnect - 3/8" HB Straight
Operating Pressure: 40 PSI max (no pressure switch version)
Pressure Switch Setting: 40 psi off / 25 psi on
Self Priming: Up to 6ft
Liquid Temperature: 110 degF maximum
Motor Type: Permanent magnet motor
Motor Voltage: 12 VDC
Current for 12 VDC: 2.5 amps @ 25 psi
Certifications: CSA, NSF
Weight: 1.25lbs (0.5kg)
Applications:
General Industrial
Chemical wash down
Evaporative Cooling Systems
Fluid Transfer
RO Filtration
Food & Beverage
Food Processing
Water Dispense
Agricultural
Fogging / Misting
ATV & Backpack Sprayers
Automotive
De-watering
